Product Glance

Model	X9
Version	10
Crypto algorithm/coins	RandomX \| XMR
Typical hashrate, KH/s(1-1)	1000
Power on wall @25℃(1-2), Watt(1-1)	2472
Power efficiency on wall@25℃(1-2), J/K(1-1)	2.47

Detailed Characteristics

Power supply
Phase	1
^{Input voltage, Volt(2-1)}	220~277
Input Frequency Range, Hz	50/60
^{Input max current(2-2), Amp}	20
Power Port	P14
Hardware Configuration
Network connection mode	RJ45 Ethernet 10/100M
*Server size (LengthWidthHeight, w/o package), mm*	361219293
*Server size (LengthWidthHeight, with package), mm*	630350430
Net weight, kg	17.5
Gross weight, kg	20.2
Noise^(2-3) @25℃, dBA	76
Max airflow^(2-4), CFM	480
Environment Requirements
Operating temperature, °C	-20~45
Storage temperature, °C	-40~70
Operation humidity(non-condensing), RH	10~90%
Operating altitude^(2-5), m	≤2000

Notes:

(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.

(1-2) Inlet air temperature.

(2-1) Caution: Wrong input voltage may probably cause server damaged.

(2-2) Single-phase AC input 20A.

(2-3) Max condition: Fan is under max RPM(rotation per minute).

(2-4) When the server is dusty or the environment is poorly ventilated, the server airflow will reduce.

(2-5) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.

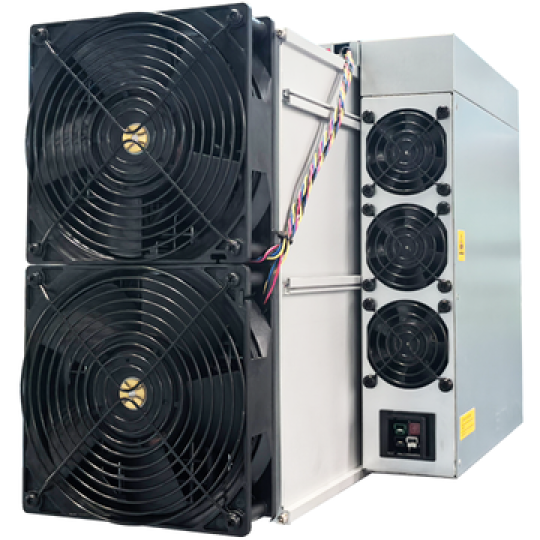

Bitmain ANTMINER X9
